8 · Link work across projects

What you will have done: tied a piece of work in one project to a piece of work in another, read the far end without being able to change it, and pointed an item at an issue on a code host.

One row, two boards

When work in one project waits on work in another, the wrong answer is to copy the card. Two copies drift, and then nobody knows which is true.

A link is one row that both sides can see. The project that owns the card can move it. The project that merely links to it sees it, reads it, and cannot touch it.

    flowchart LR
  subgraph AC["Autumn catalogue"]
    P["AC-1 Book the print run"]
  end
  subgraph WM["Warehouse move"]
    L["WM-4 Sign the Unit 7 lease"]
  end
  L -->|"blocks"| P
  P -.->|"drawn on the Warehouse move board,<br/>read-only"| WM


The four kinds of link

The walkthrough

1. Draw a link

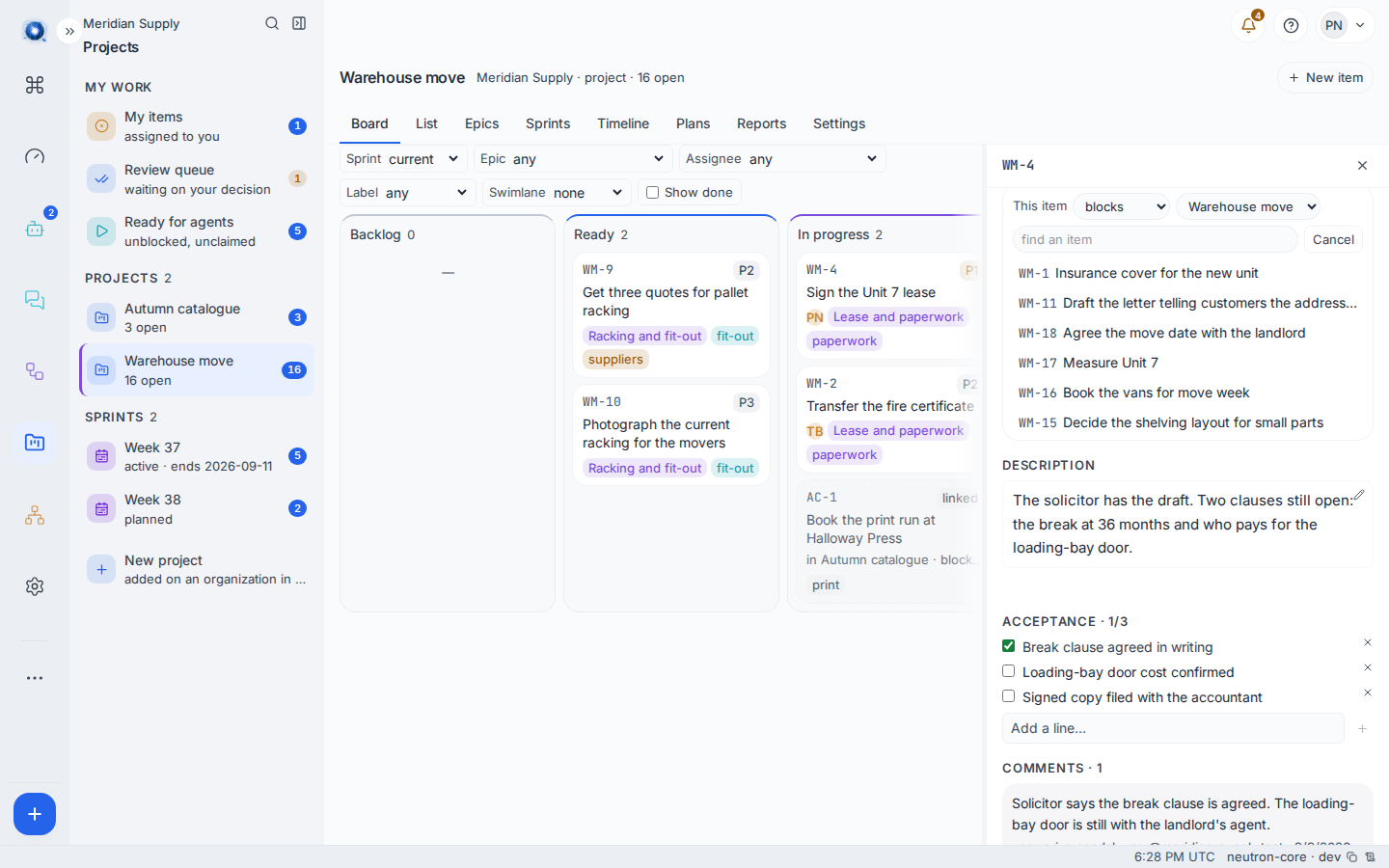

Open an item and find Linked items. Press Link and a row of controls appears: what this item does to the other one, which project to look in, and a box to find it by name or reference. Pick the item from the list under it and the link is drawn.

The project control is what makes a link cross a line. It offers every project you can read, so a card on one board can be tied to a card on another as long as you can see both.

2. See the links on an item

Linked items lists every link it carries, each with the word for the direction you are reading it from, the other item’s reference and title, its status, and the project it is in when that is a different one. The cross beside a row removes the link.

An item another board owns is read here and written there: its links show, and the controls that would change them do not.

3. See the far card on your board

A card another project owns, linked to work on yours, is drawn on your board beside the column its status names, with a dashed border and the word linked. Under it: in Autumn catalogue · blocks this board.

It is not in the column’s count, because the count is your project’s size. It cannot be dragged, because it is not yours to move.

4. Open it

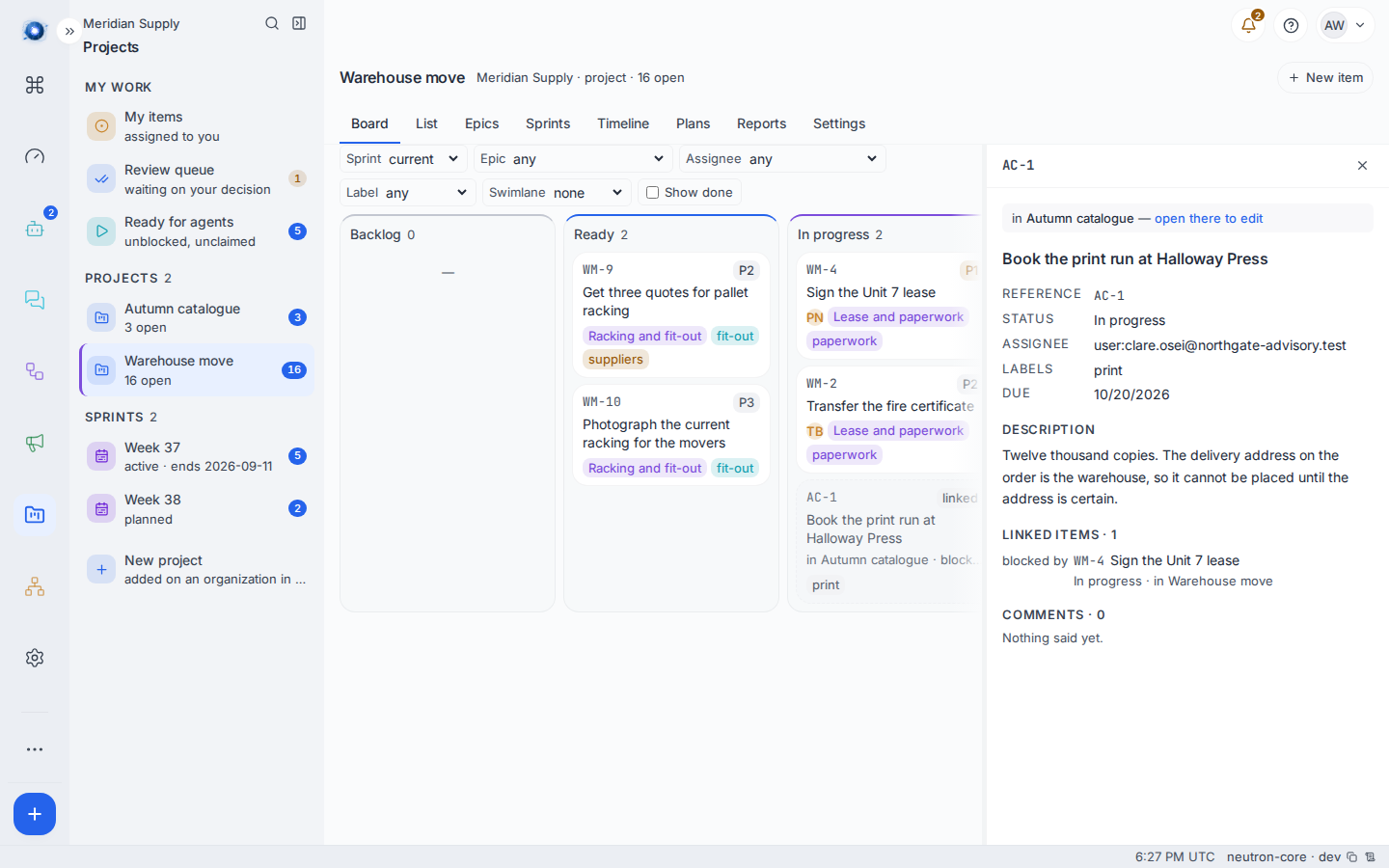

Clicking it opens it, read-only, with a line at the top saying which project it is in and offering open there to edit if you can reach that project.

5. Watch the blocker clear

When the far item reaches Done, the block is gone and the item on your board can be started. Nothing is copied and nothing is synchronised; there was only ever one row.

Naming an issue on a code host

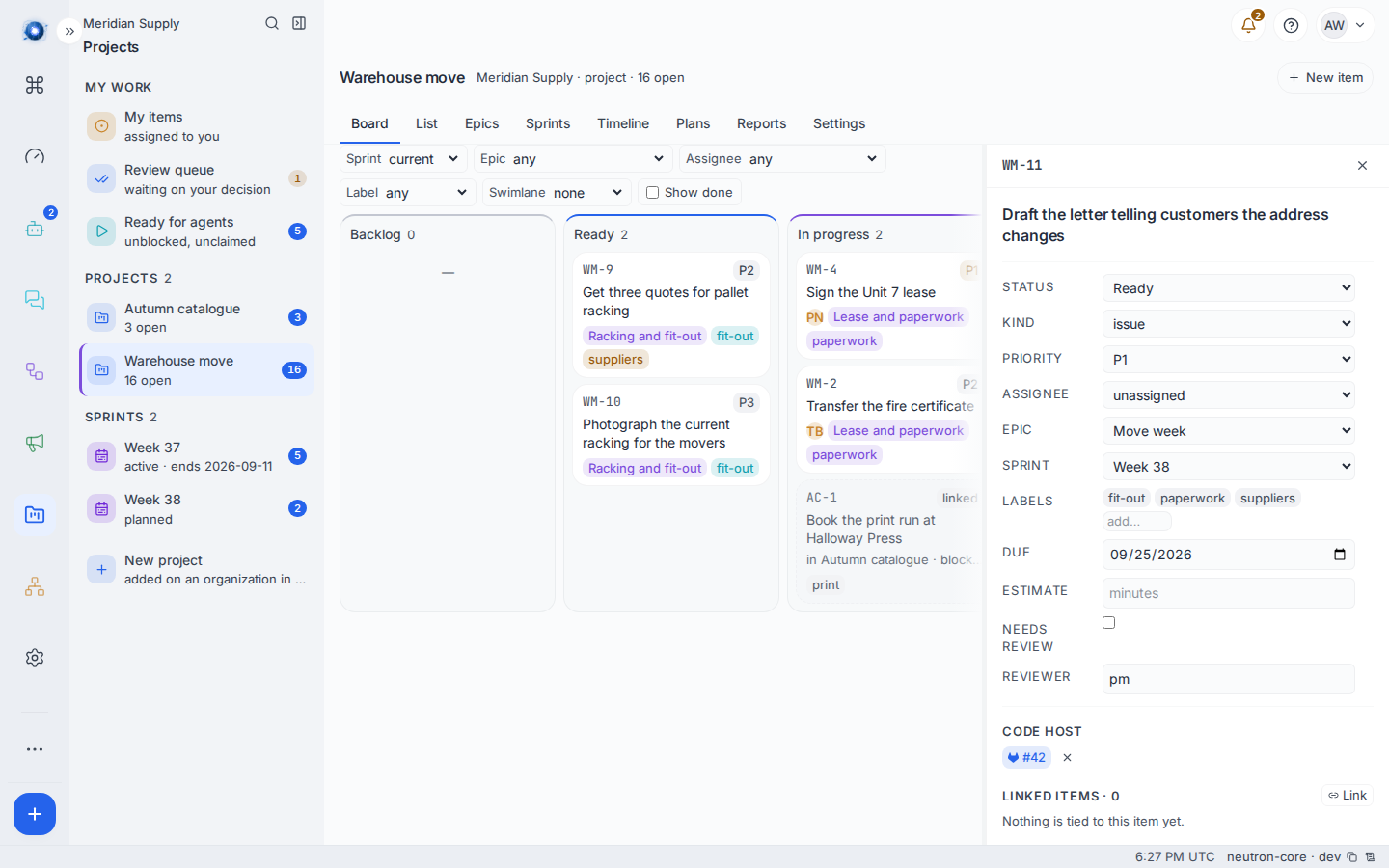

An item can also point at an issue on GitLab or GitHub. Open the item, find Code host, paste the issue’s address and press Link.

The address is read to work out which host it is; you do not pick one. An item holds one link at a time, and an issue is held by one item.

Neutron stays the tracker of record, and two things travel outward from it. Neither reads anything back.

The card’s status is written onto the issue as a label. A card entering In progress, In review or Done puts neutron:in_progress, neutron:in_review or neutron:done on the linked issue, replacing whatever the previous one said. That is the whole of it: the issue is never closed, never commented on, and its own state is never read. The other four statuses are not mirrored.

The label is written only when the instance actually holds a connection to that host. A link to an issue on a server Neutron has no credentials for is an address a person can click and nothing more. If the write fails, the card is not held up: it lands where you put it, and a line appears in its comments saying the label could not be written, naming the issue and why.

A merged change that names the item closes it. When a merge request on GitLab or GitHub is merged and its title or description names the item’s reference or the issue it is linked to, the card is moved for you, through the same door and the same rules a person’s drag goes through. If the card needs review, it parks for review instead of going to Done. Either way a comment is written on the card saying which change named it, including when the move was refused.

A worked example

Meridian Supply’s catalogue cannot be printed until the warehouse address is certain.

1. Priya opens WM-4 Sign the Unit 7 lease, presses Link, leaves the kind on blocks, switches the project control to Autumn catalogue and picks AC-1 Book the print run at Halloway Press.
2. Clare, who advises on the catalogue and is not on the warehouse project, opens AC-1 and sees blocked by WM-4 Sign the Unit 7 lease · In progress · in Warehouse move. She can read that much, and no more of that project.
3. On the warehouse board, AC-1 appears as a dashed card in the In progress column: in Autumn catalogue · blocks this board. Priya can see what her lease is holding up.
4. The day the lease is signed, WM-4 goes to Done and AC-1 stops being blocked.

What can go wrong

Confirm it worked: the far item appears under Linked items with the right direction word, and a card another project owns shows on your board with a dashed border and the word linked.
